OTR Tire Product

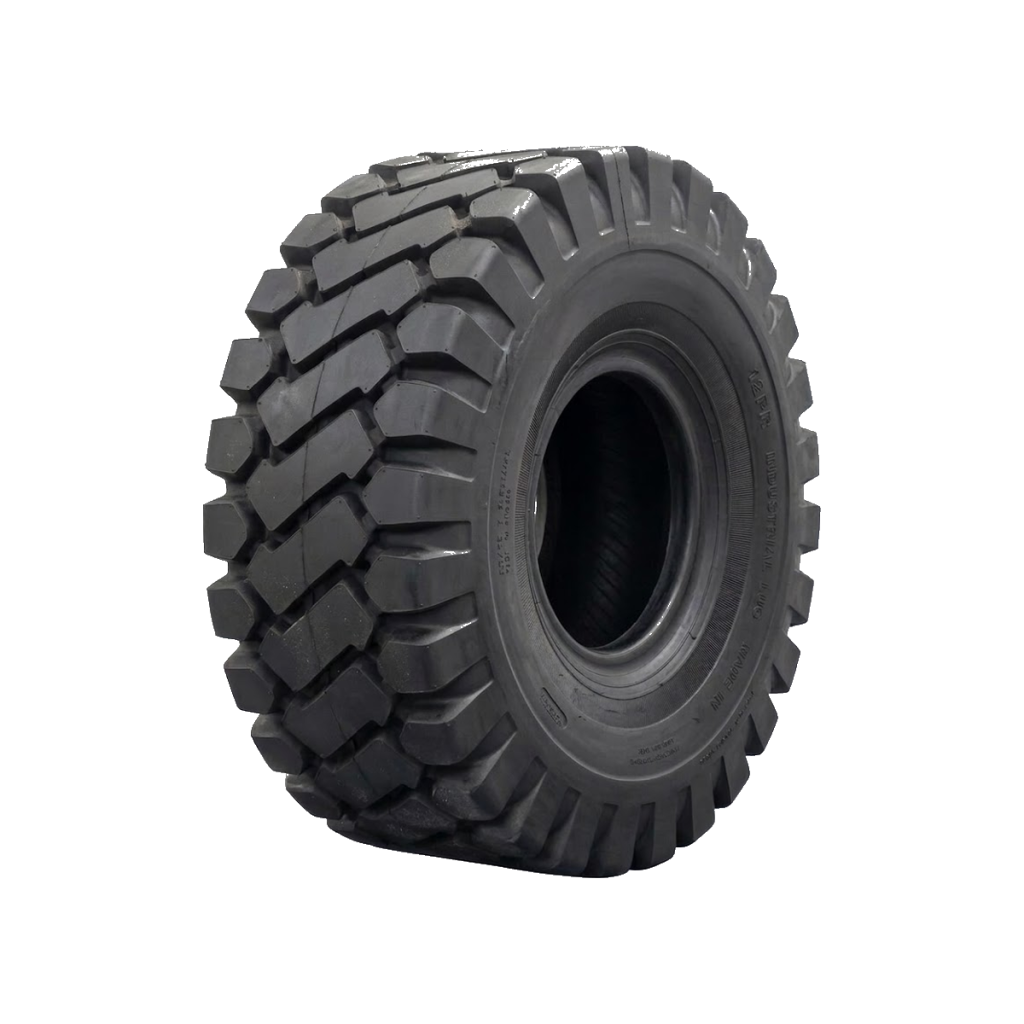

E-3/L-3B
- Category
- Mining, Quarry & Earthmoving
- Machine Group
- Loader / Grader / Dump Truck
- Size Sample
- 20.5/70-16, 17.5-25, 20.5-25, 23.5-25, 26.5-25
Mining, quarrying, loader, grader, earthmoving and rough off-road applications.
Specifications
| Pattern | Size | PR | Rim | Overall Dia. mm | Section Width mm | Pressure kPa | Max Loading kg |
|---|---|---|---|---|---|---|---|
| E-3/L-3B | 20.5/70-16 | 14PR | 8.5H | 1075 | 410 | 350 | 2850 |
| E-3/L-3B | 17.5-25 | 16PR | 14.00/1.5 | 1350 | 445 | 475 | 7300 |
| E-3/L-3B | 17.5-25 | 20PR | 14.00/1.5 | 1350 | 445 | 575 | 8250 |
| E-3/L-3B | 20.5-25 | 20PR | 17.00/2.0 | 1490 | 520 | 450 | 9500 |
| E-3/L-3B | 20.5-25 | 24PR | 17.00/2.0 | 1490 | 520 | 525 | 10300 |
| E-3/L-3B | 23.5-25 | 20PR | 19.50/2.5 | 1615 | 595 | 375 | 10900 |
| E-3/L-3B | 23.5-25 | 24PR | 19.50/2.5 | 1615 | 595 | 475 | 12500 |
| E-3/L-3B | 23.5-25 | 28PR | 19.50/2.5 | 1615 | 595 | 550 | 13600 |
| E-3/L-3B | 26.5-25 | 24PR | 22.00/3.0 | 1750 | 675 | 400 | 14000 |
| E-3/L-3B | 26.5-25 | 28PR | 22.00/3.0 | 1750 | 675 | 475 | 15500 |
| E-3/L-3B | 26.5-25 | 32PR | 22.00/3.0 | 1750 | 675 | 550 | 17000 |
Product Inquiry
Ask about E-3/L-3B tire supply.
Send the size, quantity, application and destination. We will help confirm available options and quotation details.
