OTR Tire Product

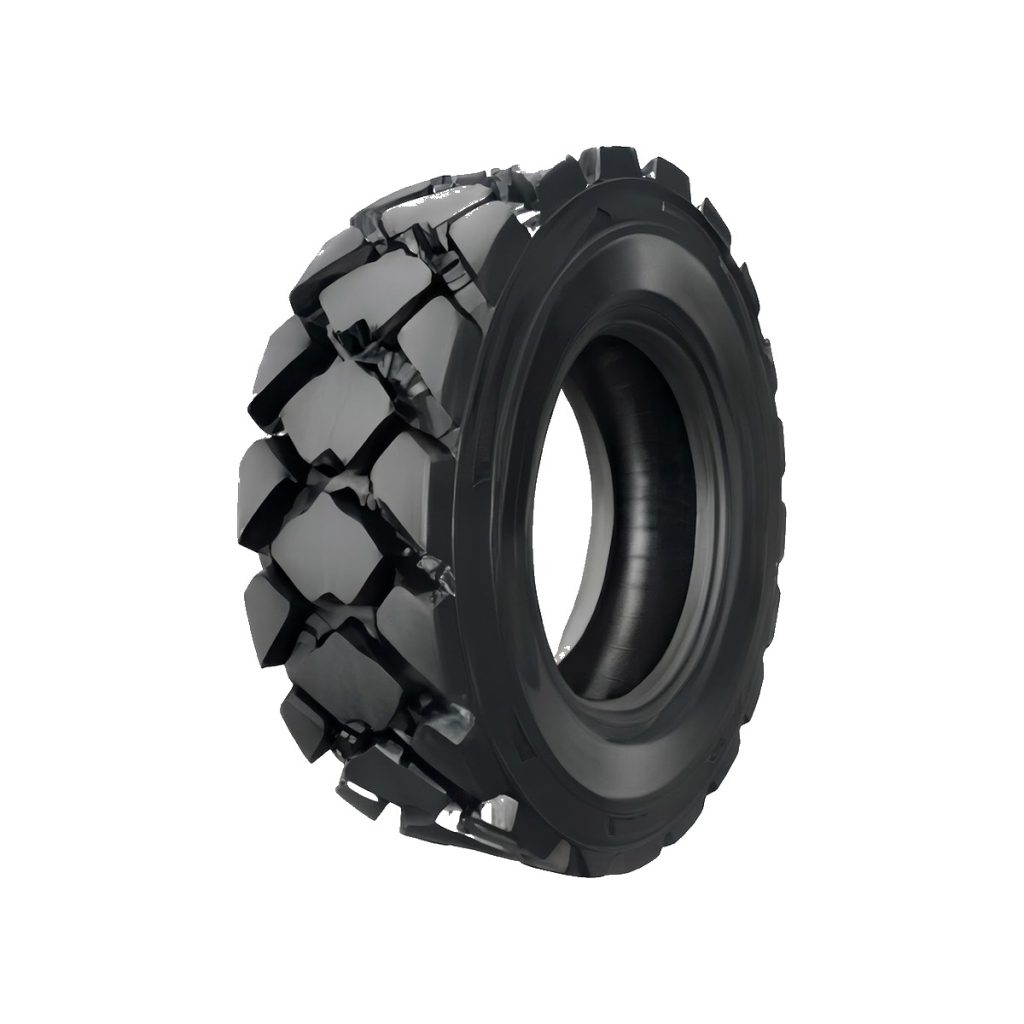

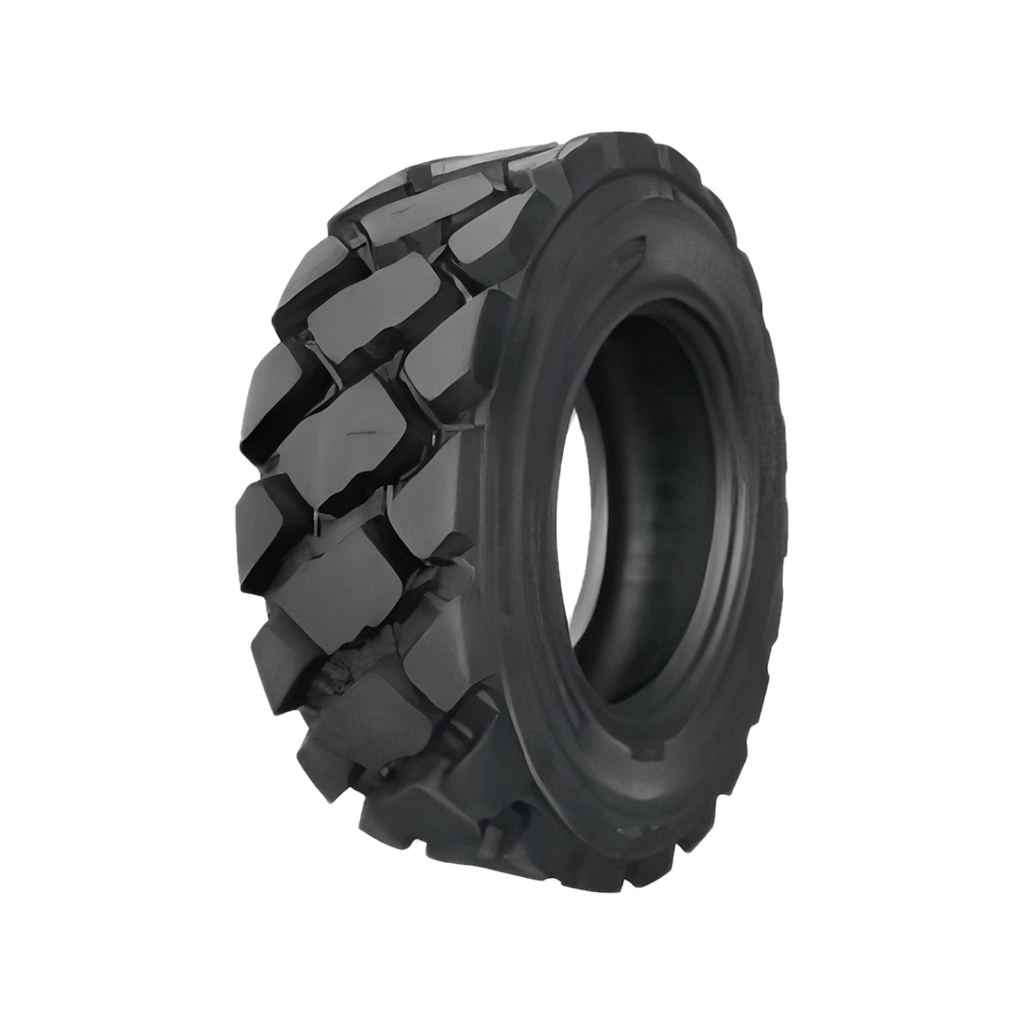

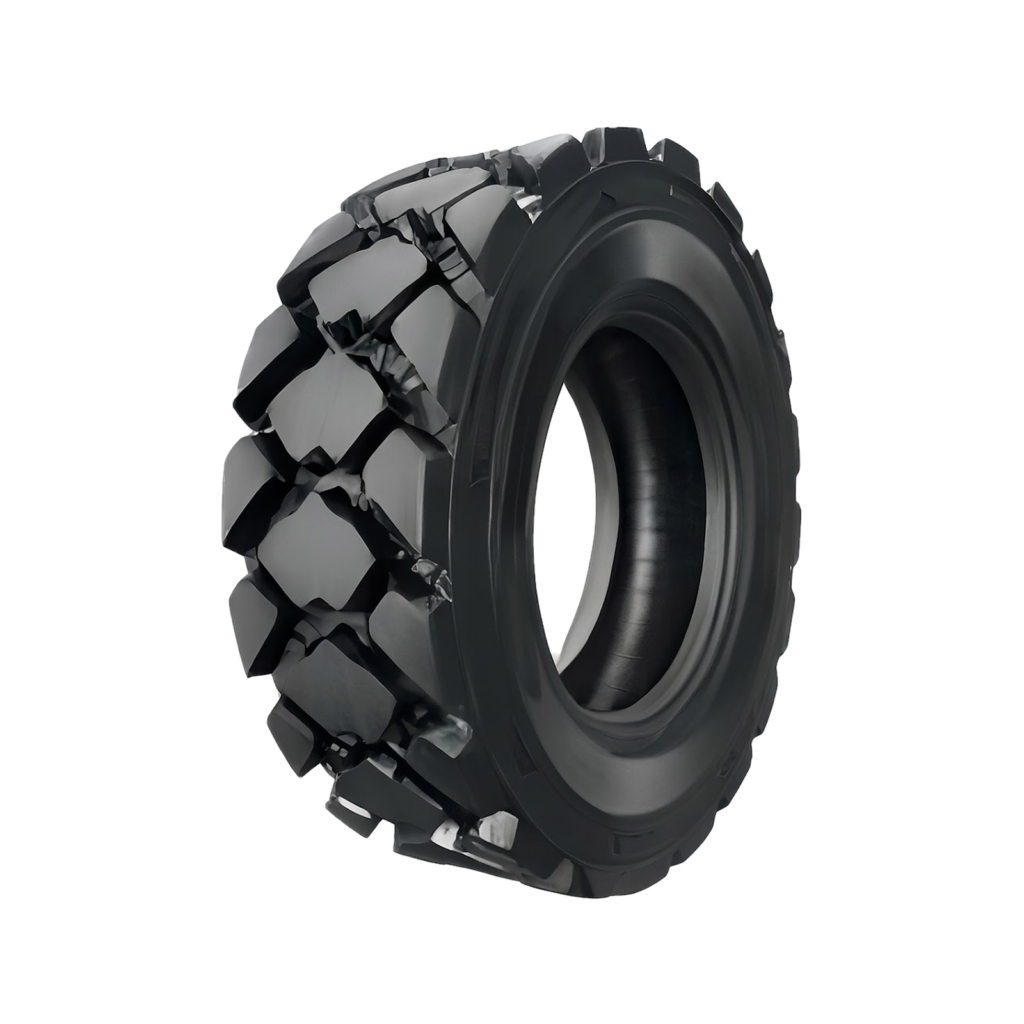

L-5 Skid Steer Tire Series 1
- Category
- Industrial & Skid Steer
- Machine Group
- Skid Steer / Backhoe / Industrial
- Size Sample
- 10-16.5, 12-16.5, 12.5/80-18
Industrial equipment, backhoe loader and skid steer applications.
Specifications
| Pattern | Size | PR | Rim | Overall Dia. mm | Section Width mm | Pressure kPa | Max Loading kg |
|---|---|---|---|---|---|---|---|
| L5-1 | 10-16.5 | 10PR | 8.25 | 779 | 261 | 520 | 2170 |
| L5-1 | 12-16.5 | 12PR | 9.75 | 790 | 300 | 550 | 2900 |
| L5-1 | 12.5/80-18 | 16PR | W9 | 965 | 306 | 480 | 4055 |
| L5-2 | 10-16.5 | 10PR | 8.25 | 779 | 261 | 520 | 2170 |
| L5-2 | 12-16.5 | 12PR | 9.75 | 790 | 300 | 550 | 2900 |
| L5-2 | 12.5/80-18 | 16PR | W9 | 965 | 306 | 480 | 4055 |
Product Inquiry
Ask about L-5 Skid Steer Tire Series 1 tire supply.
Send the size, quantity, application and destination. We will help confirm available options and quotation details.
