OTR Tire Product

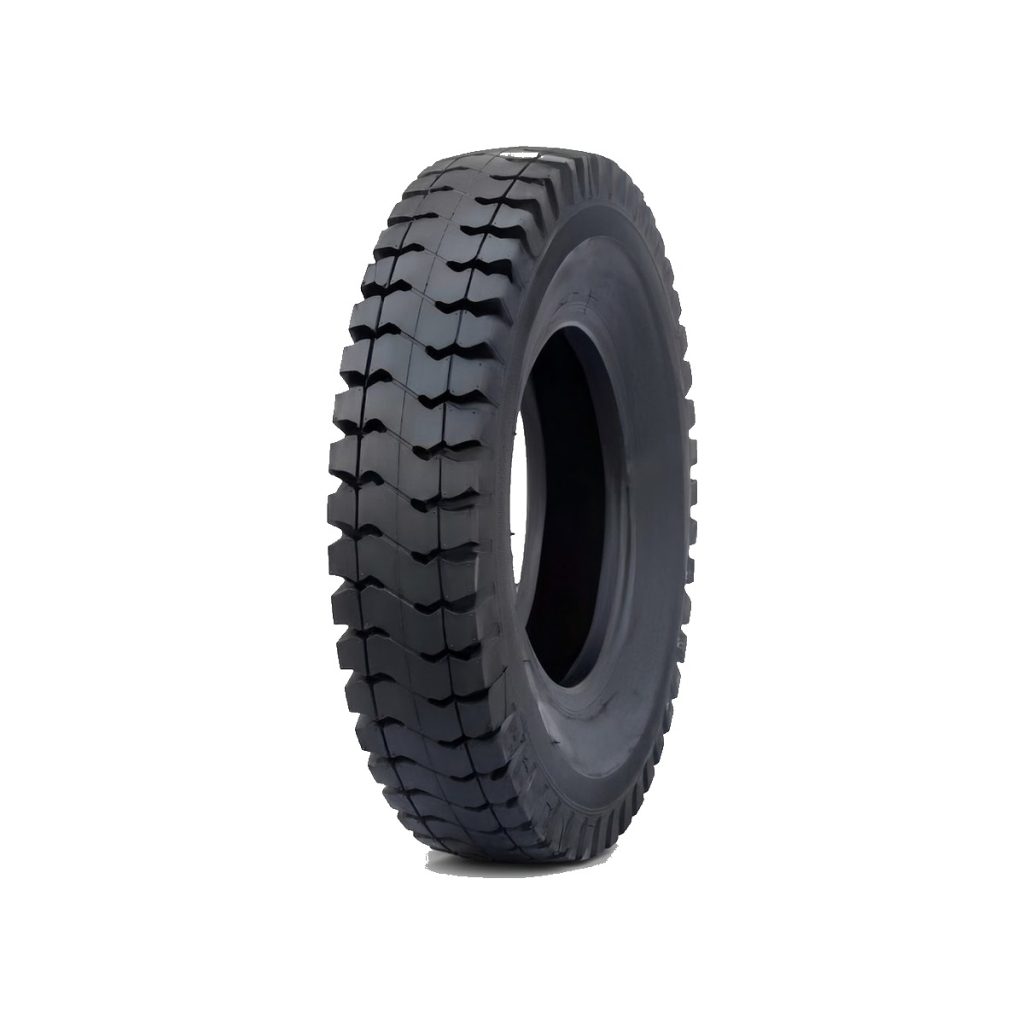

LUG
- Category
- Other Engineering Tires
- Machine Group
- General Engineering
- Size Sample
- 7.50-16
Engineering and specialty tire applications.
Specifications
| Pattern | Size | PR | Rim | Overall Dia. mm | Section Width mm | Pressure kPa | Max Loading kg |
|---|---|---|---|---|---|---|---|
| LUG | *5.50-13 | 8PR | 4.00B | 620 | 160 | 500 | 560 |
| LUG | *6.00-13 | 8PR | 4.50B | 655 | 170 | 420 | 580 |
| LUG | *6.00-14 | 8PR | 4 1/2J | 680 | 170 | 420 | 600 |
| LUG | *6.00-15 | 8PR | 4.50E | 705 | 170 | 420 | 630 |
| LUG | 6.00-16 | 10PR | 4.50E | 730 | 170 | 530 | 755 |
| LUG | 6.50-14 | 10PR | 4 1/2J | 705 | 180 | 530 | 690 |
| LUG | 6.50-16 | 10PR | 5.50F | 750 | 185 | 530 | 860 |
| LUG | 7.00-15 | 12PR | 5.50F | 750 | 200 | 630 | 1080 |
| LUG | 7.00-16 | 12PR | 5.50F | 775 | 200 | 630 | 965 |
| LUG | 7.50-15 | 12PR | 6.00G | 780 | 215 | 730 | 1285 |
| LUG | 7.50-16 | 12PR | 6.00G | 805 | 215 | 770 | 1320 |
| LUG | 8.25-16 | 14PR | 6.50H | 855 | 235 | 730 | 1705 |
| LUG | 7.50-16 | 16PR | 6.00G | 805 | 215 | 770 | 1320 |
Product Inquiry
Ask about LUG tire supply.
Send the size, quantity, application and destination. We will help confirm available options and quotation details.
