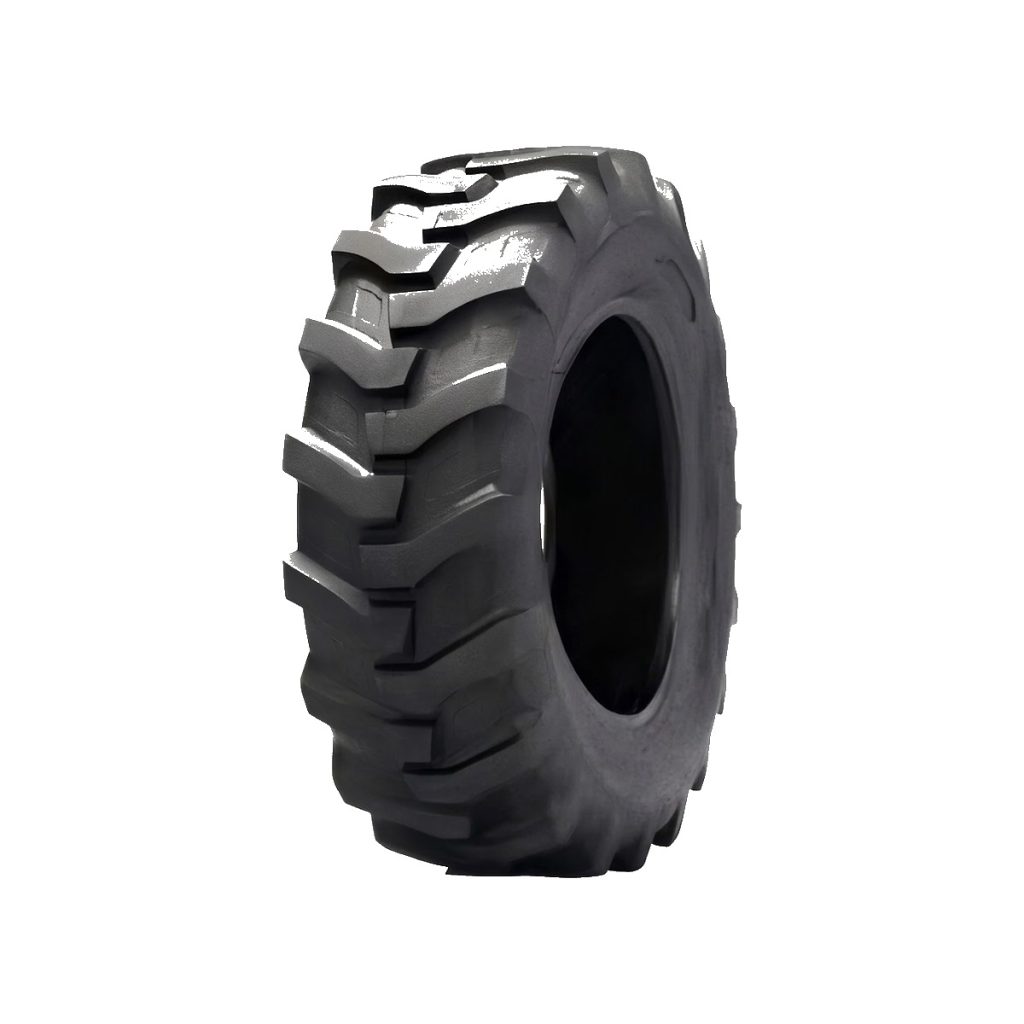

OTR Tire Product
R-4
- Category
- Industrial & Skid Steer
- Machine Group
- Skid Steer / Backhoe / Industrial
- Size Sample
- 10.5/80-18, 12.5/80-18, 16.9-24, 16.9-28, 17.5L-24, 18.4-26, 19.5L-24, 21L-24
Industrial equipment, backhoe loader and skid steer applications.
Specifications
| Pattern | Size | PR | Rim | Overall Dia. mm | Section Width mm | Pressure kPa | Max Loading kg |
|---|---|---|---|---|---|---|---|
| R4-3 | 10.5/80-18 | 10PR | W9 | 875 | 279 | 370 | 1935 |
| R4-3 | 12.5/80-18 | 12PR | 11 | 350 | 1001 | 370 | 2625 |
| R4-2 | 16.9-24 | 12PR | 15 | 1236 | 429 | 260 | 3250 |
| R4-1 | 16.9-28 | 12PR | 15 | 1435 | 430 | 260 | 3450 |
| R4-4 | 17.5L-24 | 10PR | 15 | 1241 | 445 | 190 | 1900 |
| R4-1 | 18.4-26 | 12PR | 16 | 1450 | 467 | 250 | 3075 |
| R4-2 | 18.4-26 | 12PR | 16 | 1450 | 467 | 230 | 2985 |
| R4-2 | 19.5L-24 | 12PR | 17 | 1314 | 495 | 230 | 3455 |
| R4-4 | 19.5L-24 | 12PR | 17 | 1314 | 495 | 230 | 3455 |
| R4-4 | 21L-24 | 12PR | 18 | 1402 | 533 | 250 | 3075 |
Product Inquiry
Ask about R-4 tire supply.
Send the size, quantity, application and destination. We will help confirm available options and quotation details.
